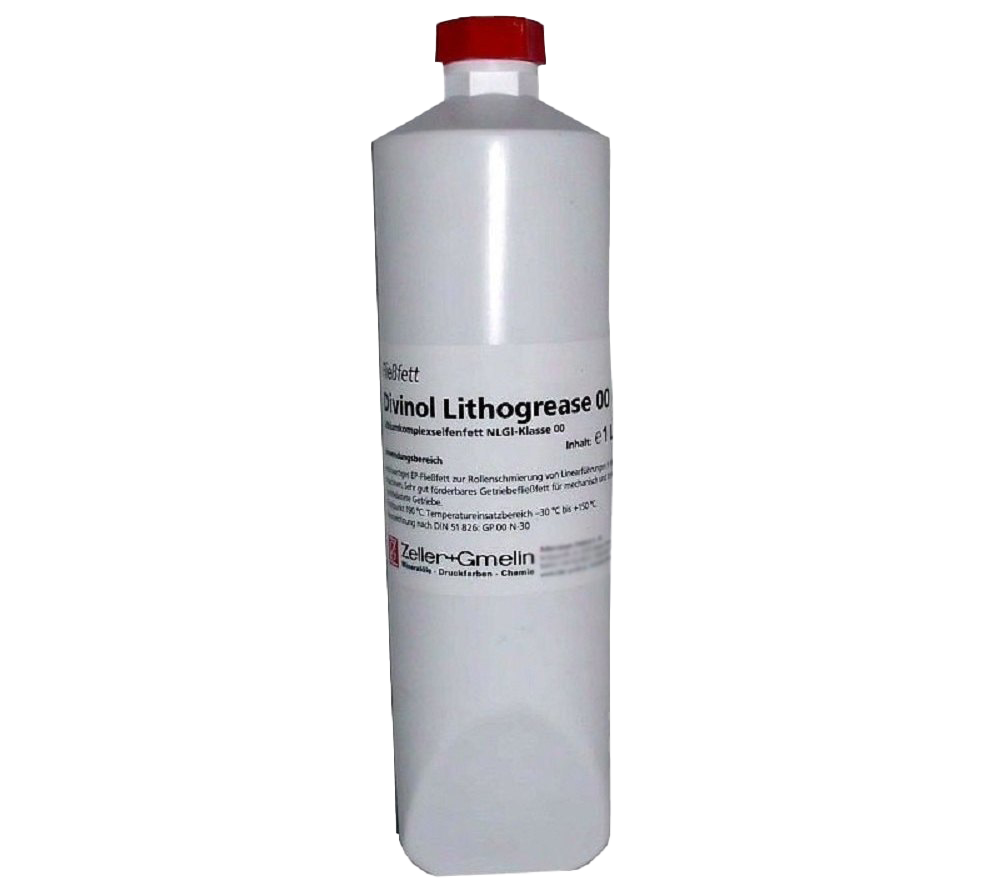

Divinol Lithogrease 000 is used for the lubrication of rollers in linear guide systems of machine tools. It can also be used for the lubrication of gears with a high mechanical load. The product is easily pumpable in central lubrication systems. Approval from SKF Lubrication Systems (formerly Willy Vogel AG) is available. Due to its low consistence, Divinol Lithogrease 000 shows a clearly better flow behaviour as a comparable grease of NLGI-class 00.
Characteristics
COLOUR / APPEARANCE
yellow
THICKENING AGENT
Lithium complex soap
OPERATING TEMPERATURE RANGE
-30°C - +140°C
NLGI-CLASS / DIN 51818
000
BASE OIL VISCOSITY 40°C / ASTM D 7042
380 mm²/s
DROPPING POINT / DIN ISO 22286
> 160 °C
WORKED PENETRATION 60 DOUBLE STROKES / DIN ISO 2137
445 - 475 0,1mm
WORKED PENETRATION ΔPW 5 000 – 60 / DIN ISO 2137
FLOW PRESSURE AT -20°C / DIN 51805-2
300 hPa
FLOW PRESSURE ≤ 200 HPA / DIN 51805-2
-15 °C
OIL SEPARATION 18H / 40 °C / DIN 51817
5 %
CORROSION EFFECT ON COPPER 24H/100°C / DIN 51811
Corrosion degree 1
VKA WELDING LOAD / DIN 51350-4
2800 N
FZG-TEST A/2,8/50 – DAMAGE LOADING STEP / DIN ISO 14635-3
> 12
FZG-TEST A/2,8/50 – SPECIFIC WEIGHT LOSS / DIN ISO 14635-3
