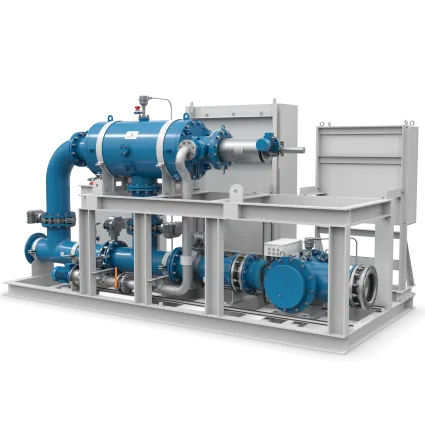

Aquarius UV Ballast Water Management System
Contact
Describe project
Benefits of Aquarius UV treatment:
- Medium pressure crossflow UV reactor using our dedicated global UV partner who also manufacture the lamps, this gives us an extremely stable supply chain
- The reactor body is manufactured from high grade materials and designed to eliminate corrosion
- The high quality quartz sleeve is self-cleaning via a mechanical wiper which operates during operations and in standby, ensuring and maintaining the highest performance possible for the lamps. This eliminates the need for chemicals and associated cleaning rigs
- Competitive lamp life durations
- High quality quartz sleeves and instrumentation ensure compliant treatment
Model
System | Capacity (m3/h) | Total installed power (kW) | Filter |
---|---|---|---|
AQ-125-UV | 12.5 / 125 | 19.0 | Manta Filter |
AQ-300-UV | 30 - 300 | 47.7 | Manta Filter |
AQ-500-UV | 50 - 500 | 62.6 | Manta Filter |
AQ-750-UV | 75 - 750 | 92.2 | E-Series Filter |
AQ-1000-UV | 100 - 1000 | 100.0 | E-Series Filter |
SCOPE OF SUPPLY
Delivered as standard
- Filtersafe® filter
- Ultra-Violet chamber kit, including flow meter
- UV reactor
- Isokinetic sample point
- Power distribution cabinet
- Control cabinet
